Description
Electrical tester, reducing diagnostic time in all 6-30V at vehicle electrical systems after a simple hook-up of the tool to the vehicles’ battery, you can:
– Determine at a glance if a circuit is positive, negative or open without having to reconnect clips from one battery pole to another.
– Test for continuity with its built -in auxiliary ground lead.
– By depressing the own switch of tester electric, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
– Test for poor ground contacts of this circuit tracer instantly without performing voltage drop tests, the tool is also short-circuit protected its internal circuit break will trip if it becomes over loaded.
Purpose of the P100 Power Circuit Probe Kit:
– Diagnose battery Status
– AC/DC voltage, resistance, diode test
– Component activation
– Find short circuit
– Find the broke wire
– Find the bad ground
– Testing trailer lights
– Check continuity
– 10m extension cable
Test Tool Specifications:
DC voltage : 0-65V +1 digit
Resistance : 0-200 K ohm
The frequency response of tone pass-through: 0Hz to 10K Hz. Circuit Breaker
Rating current: 1-10 Amp

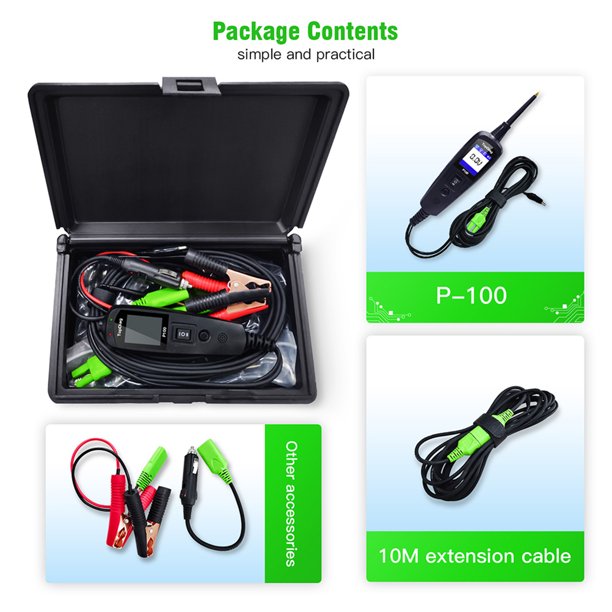

Packaging list
1 x P100 Power scan
1 x Probe
1 x Rugged Blow Moulded Case
1 x Battery Hook-up Clips
1 x 10m Extension Cable
1 x Lighter Adapter
1 x User Manual
